HUAZHUN 200X70 mm AXIAL FAN for AI Server / Data Center Cooling
2026.01.30

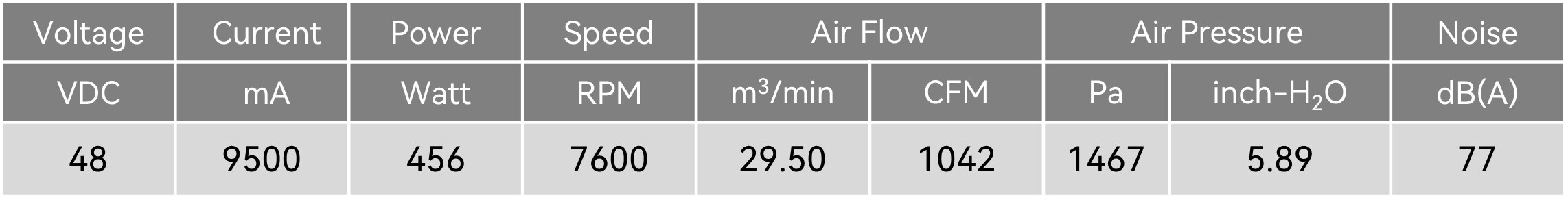

Huazhun has launched a new high-efficiency 200X70 mm axial fan with a maximum airflow of 1042 CFM and a maximum static pressure of 5.89 inch-H2O. It is available in 24V, 48V, and 54V rated voltage options and is suitable for high-efficiency cooling of AI server GPUs, sidecar cooling, rack fan walls, and CRAC(Hot aisle/cold aisle ) in next-generation data centers.
High airflow output to meet high TDP (Thermal Design Power) requirements.
Excellent thermal stability and heat resistance.
Available in 24V / 48V / 54V rated voltage options.
Life expectancy: 70,000 hours @ 40°C (L10).
Model : A320704HB4003
Dimensions:⌀200x70 mm

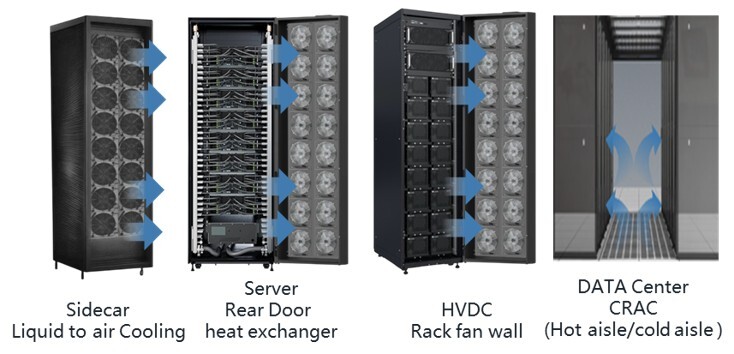

Sidecar (Liquid to air Cooling), Server Rear Door heat exchanger, HVDC Rack fan wall, DATA Center CRAC (Hot aisle/cold aisle )
